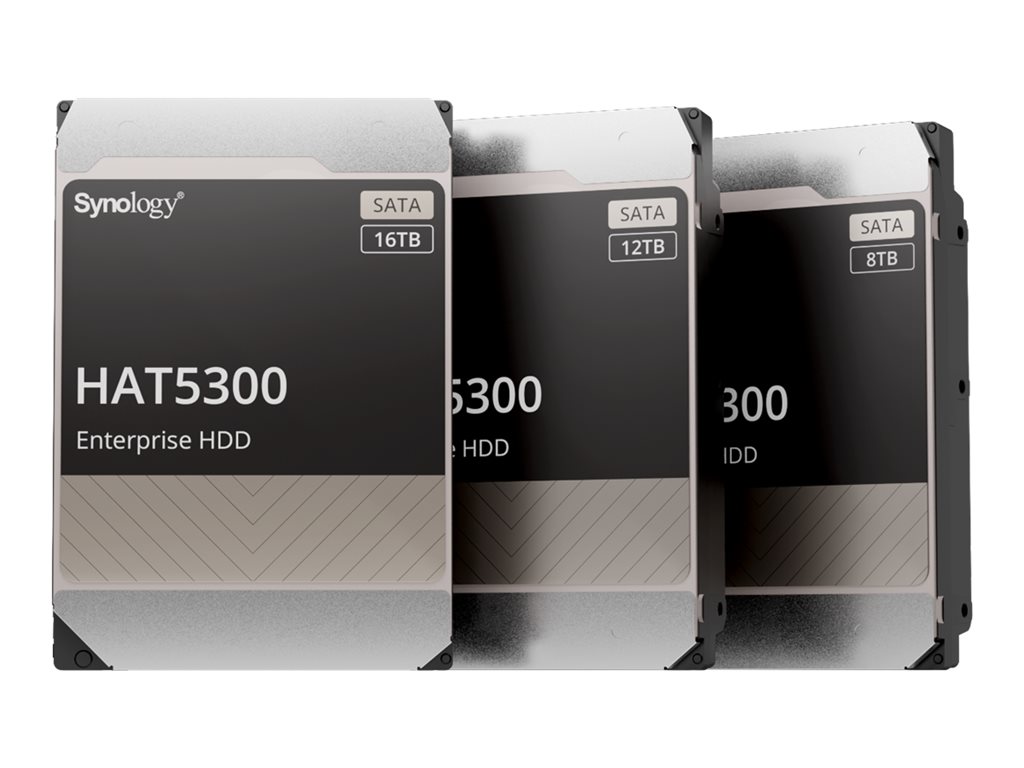

Synology - Synology HAT5300
Hard drive - 12 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 256 MB - for Deep Learning NVR DVA3221; Disk Station DS1621, DS1821; RackStation RS1221, RS3621, RS4021
Price: $811.54
MSRP: $729.99
Discount off MSRP: -11.17%
Total Available: 1402
Product Description
Additional Details
- Special Delivery: None
What's Included
| Main Specifications | |
|---|---|
| Product Description | Synology HAT5300 - hard drive - 12 TB - SATA 6Gb/s |
| Type | Hard drive - internal |
| Capacity | 12 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Buffer Size | 256 MB |
| Spindle Speed | 7200 rpm |
| Features | Persistent Write Cache technology |
| Dimensions (WxDxH) | 4 in x 5.8 in x 1 in |
| Weight | 25.39 oz |
| Manufacturer Warranty | 5-year warranty |
| Designed For | Synology SA3400, SA3600; Deep Learning NVR DVA3219, DVA3221; Disk Station DS1520+, DS1618+, DS1621+, DS1621XS+, DS1819+, DS1821+, DS220+, DS2419+, DS3018xs, DS3617xs, DS420+, DS720+, DS920+; RackStation RS1221+, RS1221RP+, RS1619xs+, RS18017XS+, RS2418+, RS2418RP+, RS2818RP+, RS3617RPxs, RS3617xs+, RS3618XS, RS3621RPxs, RS3621xs+, RS4017XS+, RS4021xs+, RS820+, RS820RP+ |
| General | |
| Device Type | Hard drive - internal |
| Capacity | 12 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 256 MB |
| Bytes per Sector | 512 |
| Features | Persistent Write Cache technology |
| Width | 4 in |
| Depth | 5.8 in |
| Height | 1 in |
| Weight | 25.39 oz |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | EAC, BSMI, CSA, ICES, KC, RCM, RoHS, TUV, UL |
| Power | |
| Power Consumption | 4.25 watt (idle) ¦ 7.83 watt (random read/write) |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Vibration Tolerance (operating) | 0.75 g @ 5-300 Hz |
| Vibration Tolerance (non-operating) | 3 g @ 5-500 Hz |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 242 MBps |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Compatibility Information | |
| Designed For | Synology SA3400, SA3600 ¦ Synology Deep Learning NVR DVA3219, DVA3221 ¦ Synology Disk Station DS1520+, DS1618+, DS1621+, DS1621XS+, DS1819+, DS1821+, DS220+, DS2419+, DS3018xs, DS3617xs, DS420+, DS720+, DS920+ ¦ Synology RackStation RS1221+, RS1221RP+, RS1619xs+, RS18017XS+, RS2418+, RS2418RP+, RS2818RP+, RS3617RPxs, RS3617xs+, RS3618XS, RS3621RPxs, RS3621xs+, RS4017XS+, RS4021xs+, RS820+, RS820RP+ |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" |
